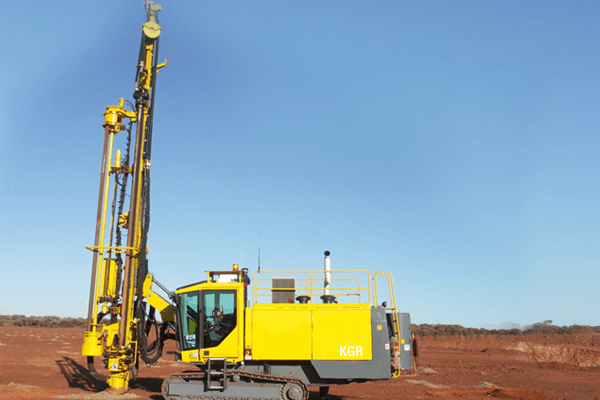

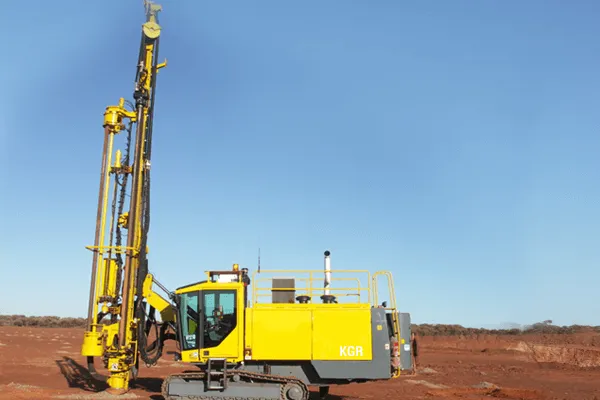

KGR Blast Hole Drilling Rig
KGR Blast Hole Drilling Rig CMBD - 114 is manufactured according to international standards from the best quality and customized rigs under the supervision of Technically Qualified Engineers.
| SNo | Specifications | KGR Blast Hole Drilling Rig CMBD - 114 |
|---|---|---|
| 1 | Drilling Diameter | 4.5" - 6" (114mm - 152mm) |
| 2 | Drilling Depth | 116 Feet (35 Mtrs) |
| 3 | Application | Mines, Quarries |
| 4 | Formation / Strata | Soft / Medium / Hard |
| 5 | Prime Mover Of Hydraulic Pumps | Power Take Off From Deck Engine |
| 6 | Carrier / Mounting | Crawler |
| 7 | Compressor | Suitable Compressor Elgi / Atlas Copco / Ir ( The compressor shall be mounted on a separate trolley) |
| 8 | Maximum Operating Pressure | 180 Kg/Cm2 |
| 9 | Mast Capacity (WT) | 8 Tons |
| 10 | Mast Capacity (Rod Handling) | 10 Feet (3.0 Mtrs) |
| 11 | Mast Height | 5.0 Mtrs |
| 12 | Centralizer Opening | 8" (204 mm) |
| 13 | Pull Up Speed | 12 Mtr/Min |
| 14 | Pull Down Speed | 12 Mtr/Min |
| 15 | Pull Down Speed | 12 Mtr/Min |
| 16 | Pull Up Force | 2300 Kgfm |
| 17 | Pull Down Force | 2300 Kgfm |
| 18 | Rotation Speed | 0 - 80 |
| 19 | Rotary Head Torque | 120 Kgm |
| 20 | Under Carriage Speed | 2.0 Kmph |
| 21 | Under Carriage Grad Ability | 30 Degree |
| 22 | Under Carriage Drive | Independent Hydraulic Motor For Each Track |
| 23 | Dimension Overall Length | 5400 (17'8") |
| 24 | Overall Width | 2,200 mm(7'2") |
| 25 | Overall Height | 2,400 mm(7'9") |
| 26 | Total Weight | 4,600 Kgs (10120 lb) |
| 27 | Advantages | Easy Movability with Crawler in uneven Terrains Provision for Angle Drilling Mast Tilting oscillation and swing operation |
Note : Due to continuous development all the above specifications are subject to change.
