KGR CD-35

KGR CD-35

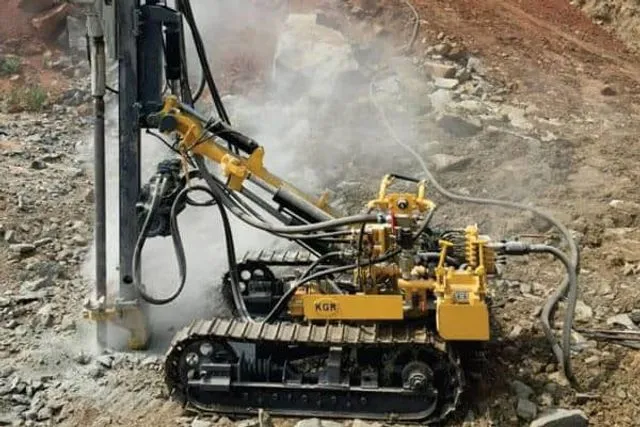

KGR CD-35 is manufactured according to international standards from the best quality and customized rigs under the supervision of Technically Qualified Engineers.

SNo Specifications KGR CD-35
1 Drilling Diameter 88mm - 127mm
2 Drilling Depth 120 Feet (40 Mtrs)
3 Drilling Rod Size 115 mm - 76 mm
4 Mounting / Carrier Crawler
5 Tramming Speed 2.5 Km/Hr
6 Feed Extension 750 mm
7 Pull Down Force 2250 Kgf
8 Pull Up Force 2250 Kgf
9 Pull Up & Pull Down Speed (Maximum) 0-18 Mtr/Min
10 Total Length 5120 mm
11 Height 5120 mm
12 Width 5120 mm
13 Travel Length 3565 mm
14 Weight 2750 Kgs
15 Compressor Any Make (Elgi / Atlas Copco / Ir )
CFM : 400 - 700
PSI : 10 - 12 bar
16 Advantages Easy To Operate And Easy To Maintain With One Person

Note : Due to continuous development all the above specifications are subject to change.
